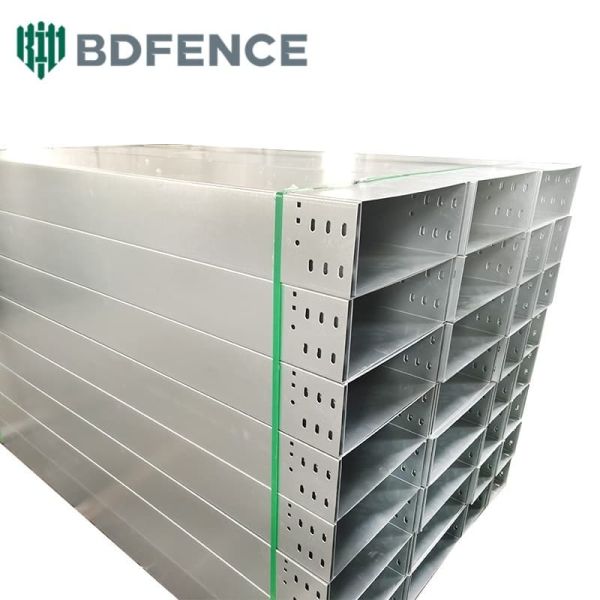

Extreme Durability Hot Dip Galvanized HDG Cable Tray for Modern Large Span Plants

  • 1
  • 2
  • 3

Brand Name : BDINDUSTRIAL

Model Number : Hot Dip Galvanised Cale Tray

Certification : ISO,CE

Place of Origin : Hengshui,China

MOQ : 200m

Price : 10-50USD

Payment Terms : D/P,L/C,T/T,Western Union

Supply Ability : 10000m/week

Delivery Time : 10-30days

Packaging Details : In pallet/bulk

Product Name : HDG Cable Tray

Key words : Extreme Durability Hot Dip Galvanized Cable Tray

Application : Especially suitable for modern large span plant

Side Rail Height : 100mm, 200 mm, 300 mm

Type : Ladder or trough type

Surface Finishing : Hot dipped galvanized

Contact Now

Extreme Durability Hot Dip Galvanized Cable Tray
Bending Hot Dip Galvanized Cable Trays represent the industry standard for high-performance cable management in demanding environments. Unlike pre-galvanized (FS) trays, these are galvanized after fabrication, ensuring complete protection with a thick zinc-iron alloy coating that covers every inch of the steel—including cuts, welds, and punch holes.
Extreme Durability Hot Dip Galvanized HDG Cable Tray for Modern Large Span Plants
Bending's Superior HDG Surface Treatment Process
  • Galvanization Process Control: Bending operates its own galvanizing pool with precise monitoring of zinc bath temperature (typically 450°C) and zinc ingot purity (99.99%)
  • Pre-treatment Rigor: Comprehensive degreasing and pickling protocols ensure perfect steel cleanliness before dipping to prevent zinc peeling
  • ISO 1461 Compliance: Batch Test Reports provided showing mean coating thickness (70μm or 85μm)
  • Fabrication Precision: Edge rounding before galvanizing prevents formation of sharp "zinc needles" that could damage cables
  • Post-Galvanization Inspection: Quality checks using Magnetic Thickness Gauges and inspection for "white rust" before shipping
Bending Hot Dip Galvanized Cable Tray Applications
  • Energy & Infrastructure: Power plants, substations, and solar farms with extreme UV and outdoor exposure
  • Heavy Industry: Oil & Gas refineries, chemical plants, and mining operations
  • Transportation: Tunnels, bridges, and railway systems with high humidity and vibration
  • Water Treatment: Sewage plants and desalination facilities with corrosive fumes
  • Marine & Coastal: Ports and docks in high salt-spray environments
Bending Hot Dip Galvanized Cable Tray Technical Requirements
  • Material: Carbon Steel (Q235B or S235JR) with controlled silicon and phosphorus content for uniform gray finish
  • Coating: Compliant with ISO 1461 (International) or ASTM A123 (American) standards
  • Specifications: High load-bearing capacity with thicker gauges (1.5-3.0mm) compared to indoor trays
Bending Hot Dip Galvanized Cable Tray Specifications & Standards
Feature Standard / Specification Common Parameter
Material GB/T 700 / EN 10025 Q235B / S235JR / S275JR
Finish Standard ISO 1461 / BS EN ISO 1461 Batch Hot Dip Galvanizing
Zinc Thickness ISO 1461 Table 3 60μm-85μm (Avg.)
Zinc Weight ISO 1461 450-610g/m²
Tray Width Industry Standard 100mm-900mm
Side Height Industry Standard 50mm, 60mm, 100mm, 150mm
Sheet Thickness Heavy Duty 1.5mm, 2.0mm, 2.5mm, 3.0mm
Standard Length Common Shipping Length 3000mm (3 meters)
Hole Pattern Perforated / Ventilated Oblong holes for airflow and ties
Extreme Durability Hot Dip Galvanized HDG Cable Tray for Modern Large Span Plants Extreme Durability Hot Dip Galvanized HDG Cable Tray for Modern Large Span Plants Extreme Durability Hot Dip Galvanized HDG Cable Tray for Modern Large Span Plants Extreme Durability Hot Dip Galvanized HDG Cable Tray for Modern Large Span Plants
